10 KVA – 400 KVA SERVO-INV SERIE

• Pure Sinus Inverters

• High Frequency SPWM Technology

• IGBT Semiconductor Design Inverter

• DSP Microprocessor Control

• Energy Saving High Efficiency

• Touch Graphic LCD Display

• Cost-effective solution with superior input and output performance

• Wide DC Voltage Operating Range

• Short Circuit, Overload and Lightning Protection

• Intelligent Communication Options

• Common Technical Service Support

• ISO 9001 Standards

General Features

– Pure Sinusoidal Waveform Inverter – High Frequency SPWM – Enhanced Performance DSP Microprocessor Control – Inverter Design With IGBT – High Quality Energy With Low Output Thdv (Thdv <3%) – Excellent Adjustment With Loads On Different Power

Factors: – Wide Input DC Voltage Range (630V ~ 820V) – High Efficiency Up To 95% – Smart Fan Control – EMI / RFI Filter – Short Circuit, High / Low Voltage And Overload

Protection: – Cold Start – 240 X 320 Touch Graphic LCD Display – Advanced Error/Fault Detection, 1000 Warning/Event

Memory: – Advanced Communication Options With RS232 / RS485

Optional Features

– SNMP Advanced Remote Monitoring And Management Option – 4 Programmable User Contacts – GPRS Modem – CAN BUS Communication Options – Galvanic Insulation Transformers – Special Input / Output Options

Standards

– EN 62040-1 Security – EN 62040-2 EMC – EN 62040-3 LVD – ISO 9001:2015

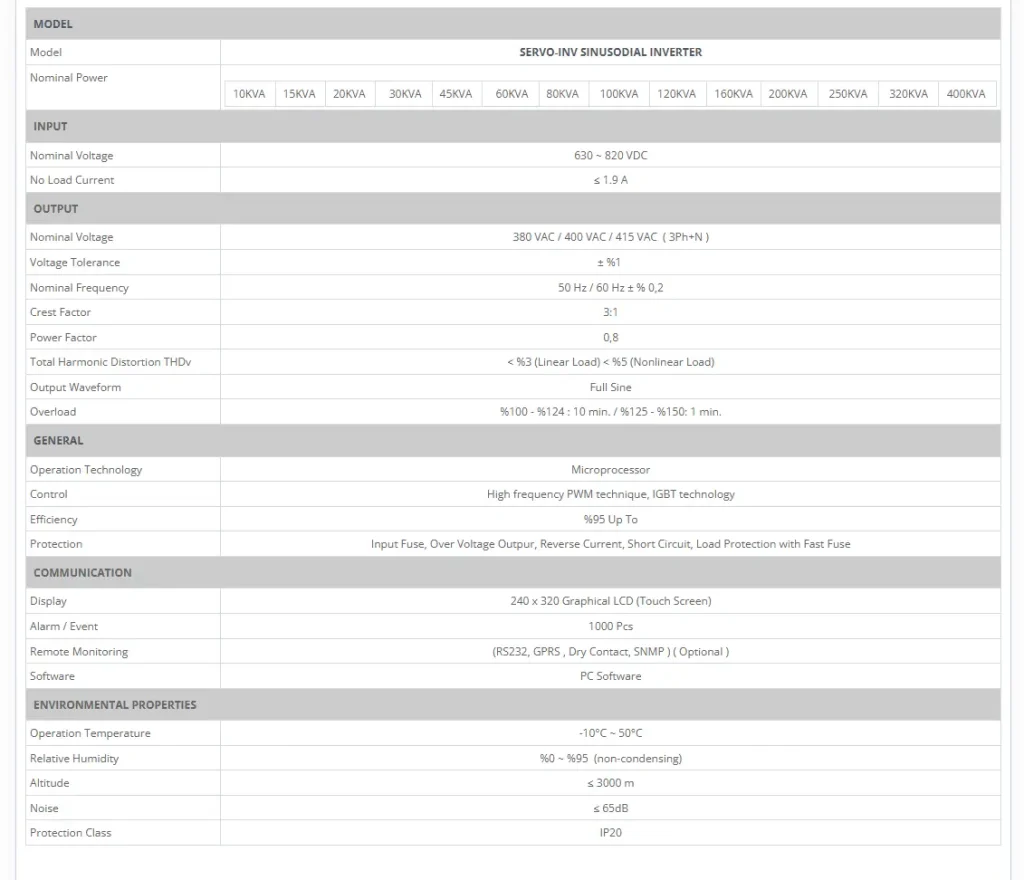

Technical Specifications
