10 KVA – 400 KVA NETPRO-FC SERIES

• Frequency Converters

• High Frequency Double Conversion Technology

• Pure Sine Wave

• DSP Microprocessor Control

• Intelligent Battery Charge Topology

• Energy Saving High Efficiency

• Touch Graphic LCD Display

• Cost-effective solution with superior input and output performance

• Wide Input Voltage Operating Range

• Short Circuit, Overload and Lightning Protection

• Intelligent Communication Options

• Common Technical Service Support

• ISO 9001 Standards

General Features

– Pure Sinusoidal Frequency Converters – Double conversion technology – DSP microprocessor control enhanced performance – IGBT Rectifier and Inverter – Active input power factor correction PFC (≥ 0.99) – Low Input Thdi (<%3) With Excelent Generator

Compatibility: – Low Output Thdv (<%3) Perfect Energy For Loads – Excellent fit with loads on different power factors – Wide input voltage range – High efficiency up to 95% – Smart fan control – EMI / RFI filter – Short circuit, high / low voltage and overload

Protection: – Battery operated without battery – Advanced battery charge management – 240 x 320 Touch graphic LCD display – Advanced fault detection, 1000 event memory – Advanced communication options with RS232 / RS485

Optional Features

– Advanced remote monitoring and management option (SNMP) – Four programmable user contacts – GPRS modem – CAN BUS communication options – Battery handling and battery management – Galvanic insulation traformers – Special input / output options

Standards

– EN 62040-1 Security – EN 62040-2 EMC – EN 62040-3 LVD – ISO 9001:2015

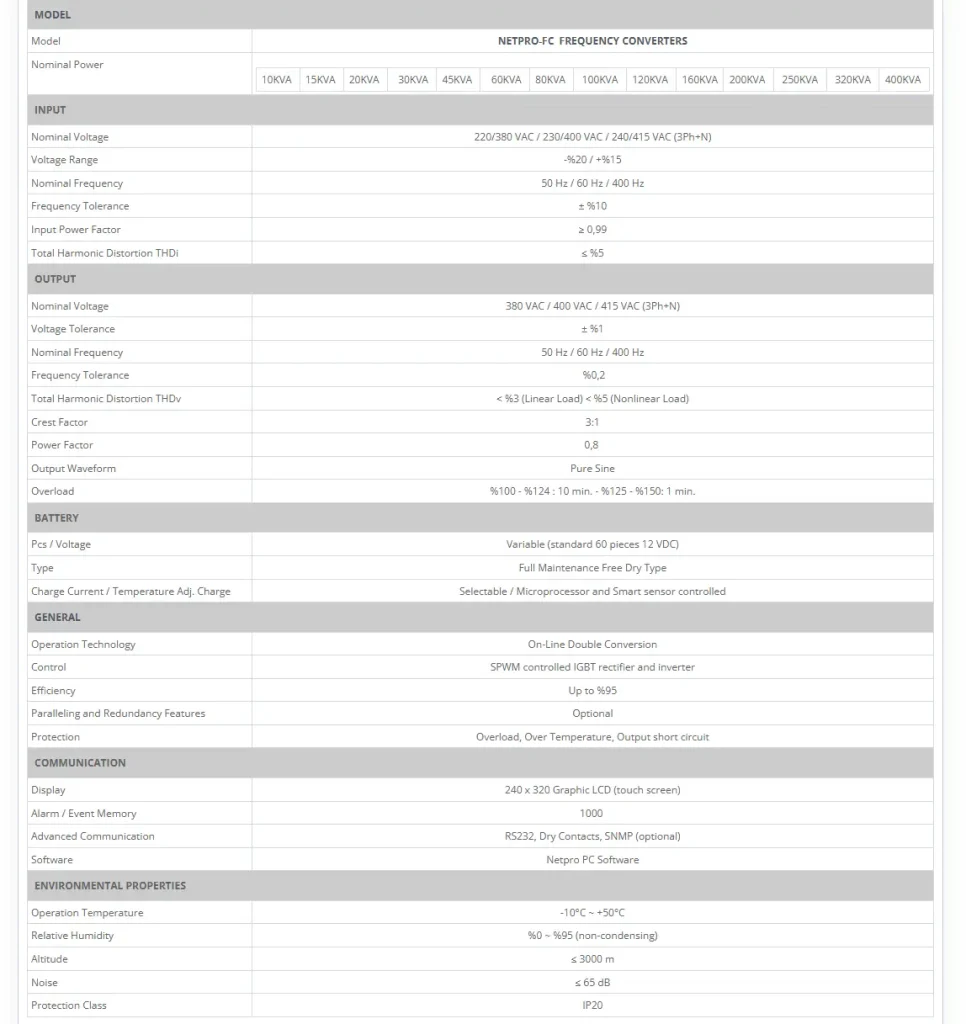

Technical Specifications
